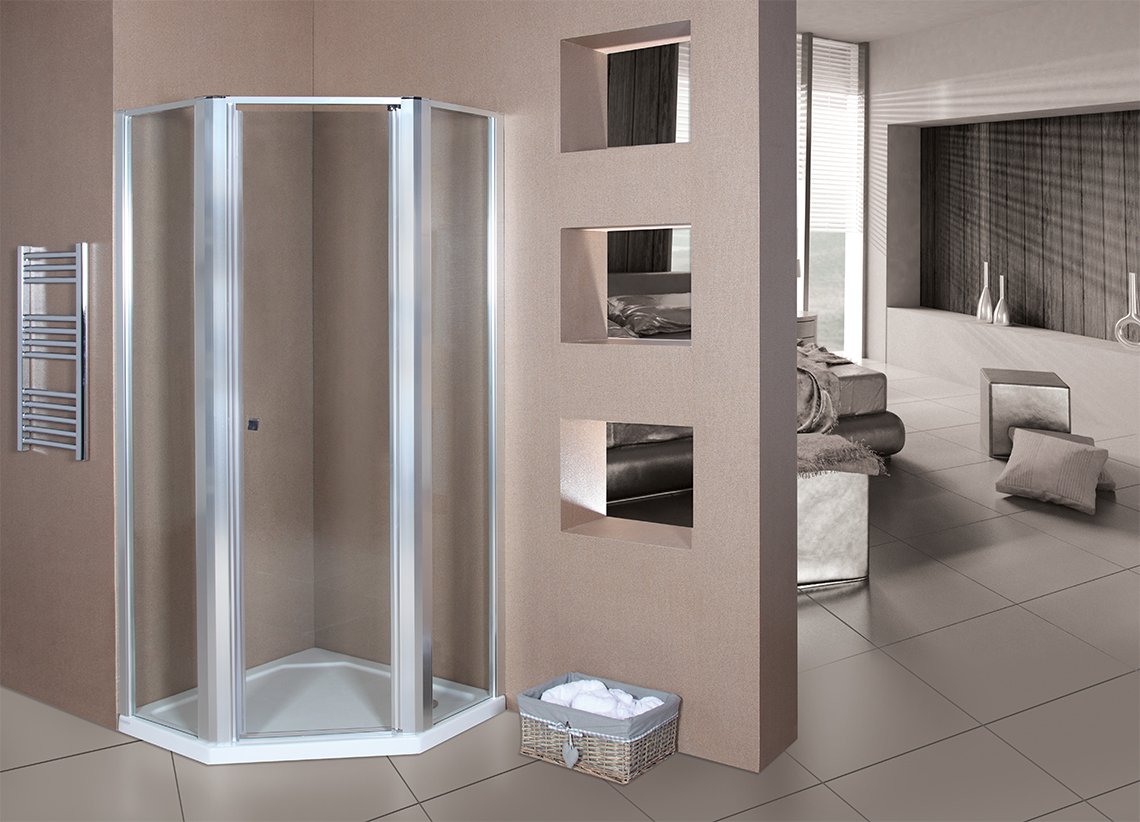

M-502P
TECHNICAL SPECIFICATIONS
| MODEL | MOON SERIES |
| APPLICATION | PENTAGON |
| HEIGHT | 200 CM |
| MEASURE RANGE | 90X90-130X130 CM |
| FIXING | GLASS HOLDER |
| ADJUSTMENT SHARE | 1.5 CM |
| PROFILE THICKNESS | 4 CM |
| PROFILE WEIGHT | 0.820 GR/MT |
| GLASS | 6MM |
| GLASS EDGE CHAMFER | GENERAL |
| HANDLE | BRASS/CHROME |
| CHROME COVER | PROFILE, SCREW |
| HINGE | ELEVATOR |

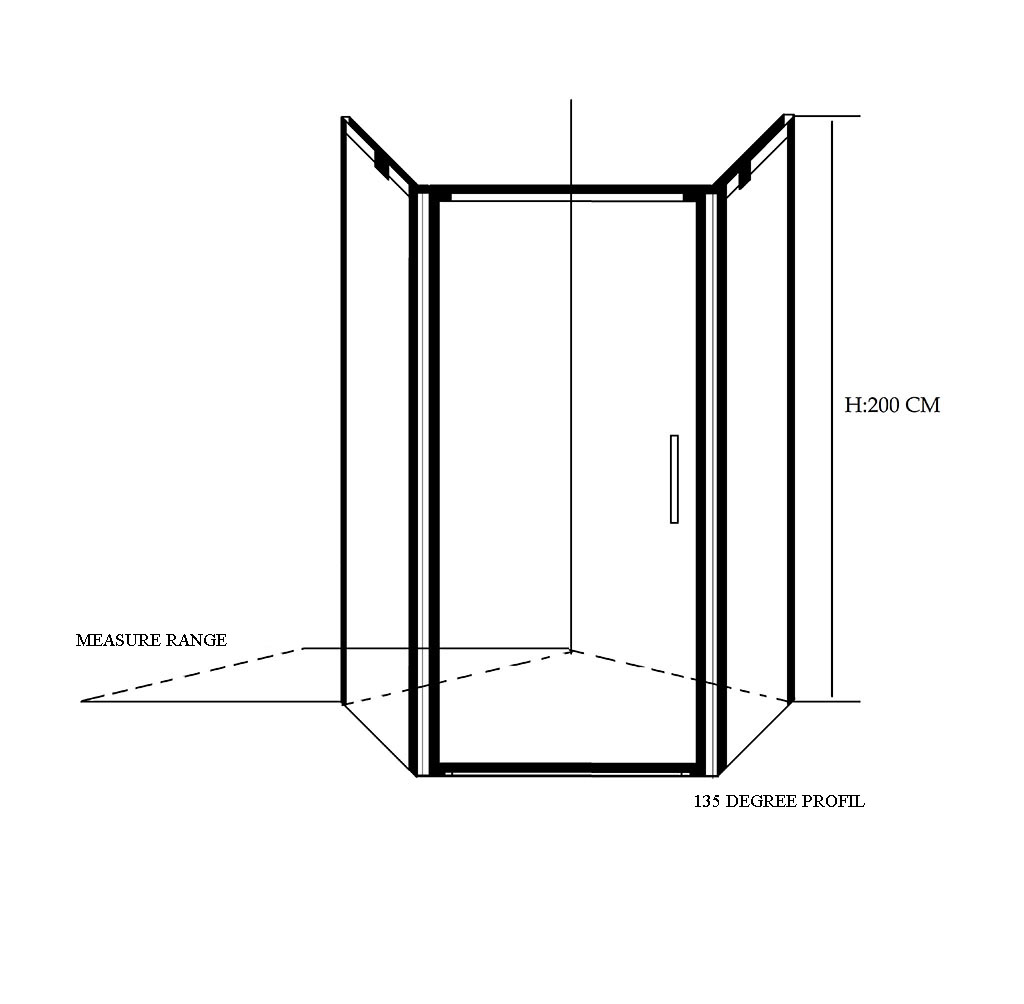

TECHNICAL DRAWING
135 DEGREE PROFIL
