M-503
TECHNICAL SPECIFICATIONS
| MODEL | MOON SERIES |
| APPLICATION | 2 FIXED 2 OPENABLE |
| HEIGHT | 200 CM |
| MEASURE RANGE | 80 x 80 - 130 x 130 |
| FIXING | CROSS STABILIZER |
| ADJUSTMENT SHARE | 1,5 CM |
| PROFILE THICKNESS | 4 CM |
| PROFILE WEIGHT | 0,820 GR/MT |
| GLASS | 6MM |
| GLASS EDGE CHAMFER | GENERAL |
| HANDLE | BRASS/CHROME |
| CHROME COVER | PROFILE, SCREW |
| HINGE | ELEVATOR |

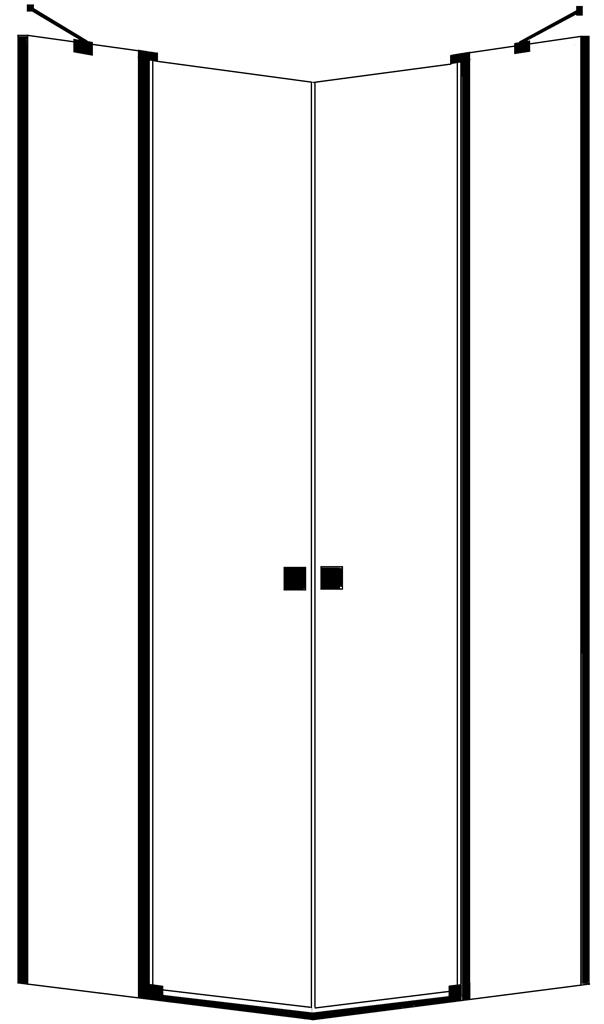

TECHNICAL DRAWING
